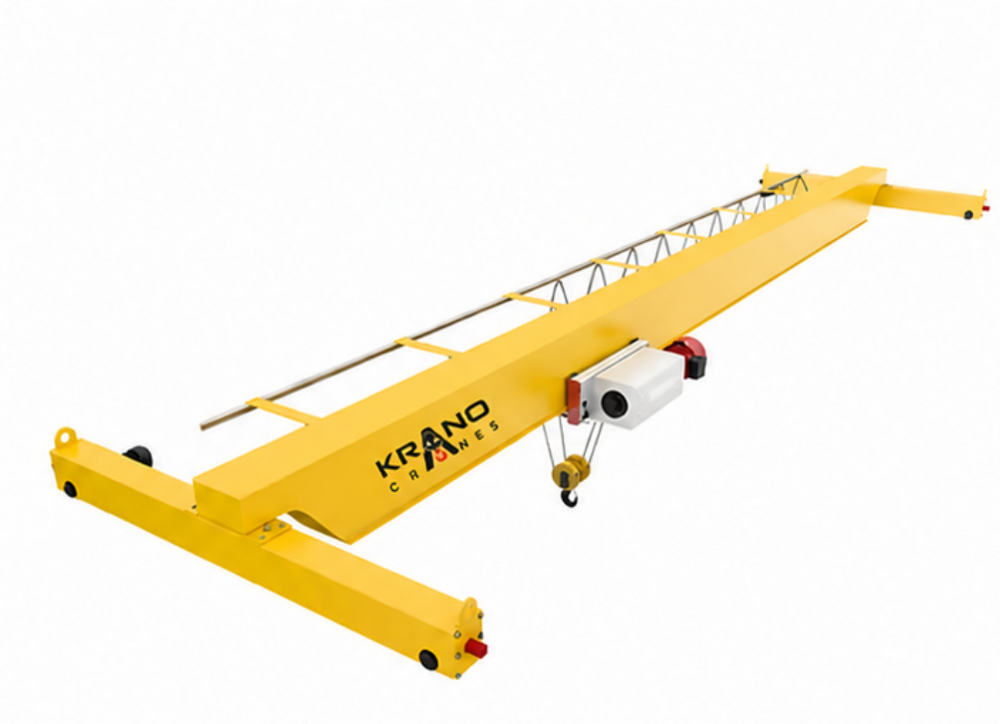

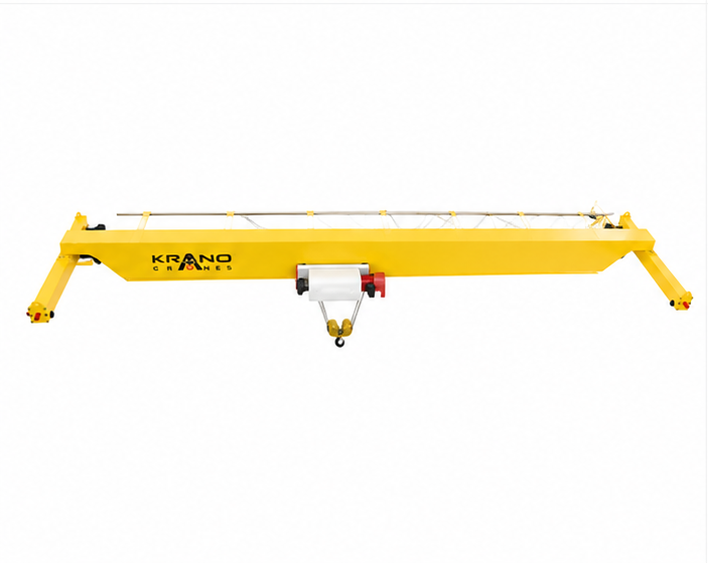

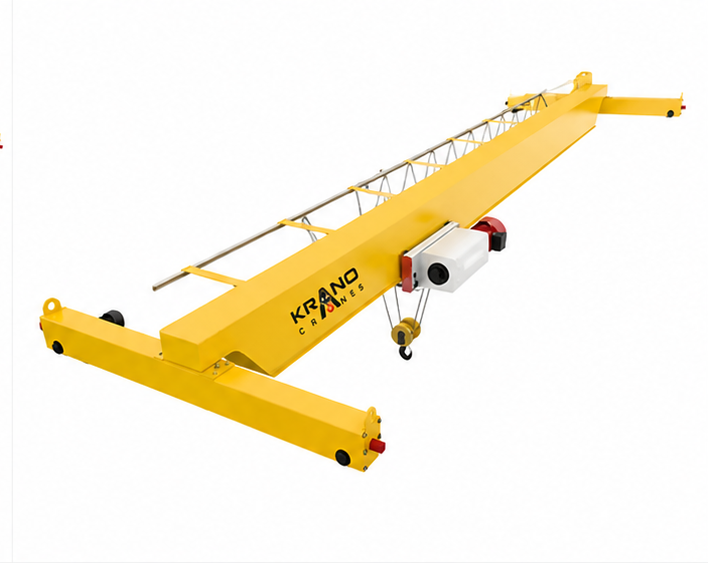

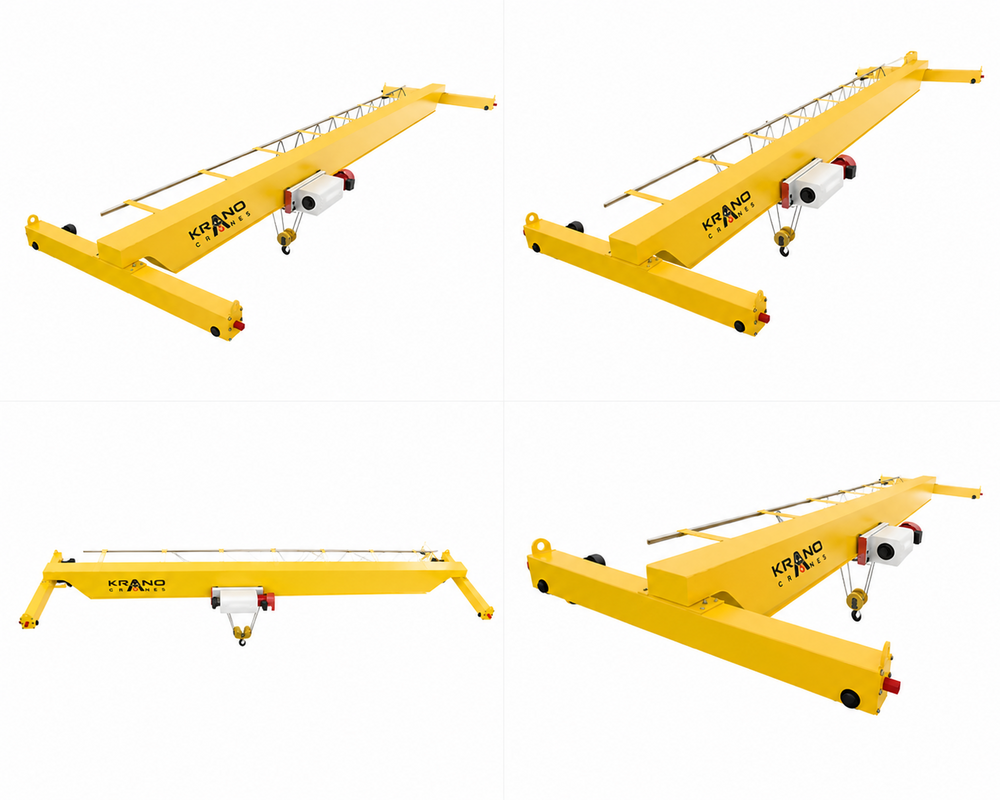

Single Girder Crane

A Single Girder Overhead Crane (EOT Crane) is a light to medium-duty material handling system designed with a single bridge girder supported on end carriages, with an electric hoist running on the underside of the beam.

This crane is known for its compact design, low dead weight, and cost-effectiveness, making it an ideal solution for workshops, warehouses, and production units.

The hoist travels along the girder while the entire crane moves along runway rails, enabling efficient lifting, lowering, and horizontal movement of materials within the workspace.

Single girder cranes require less structural support and are easier to install and maintain, making them a preferred choice for light and moderate industrial operations.

Key Features

• Lightweight and economical design
• Suitable for light to medium-duty operations
• Easy installation and low maintenance
• Smooth and efficient material handling
• Compact structure ideal for limited space
• Lower power consumption and cost-effective operation

Usage / Applications

Single Girder EOT Cranes are widely used where frequent but moderate lifting is required, such as:

• Manufacturing & fabrication units
• Warehouses & storage yards
• Assembly lines & maintenance workshops
• Packaging and logistics industries
• Power plants and engineering industries
• Construction material handling

These cranes are best suited for lifting loads up to 2030 tons in indoor industrial environments.

Product Specifications

General Technical Specifications

• Capacity: 0.5 Ton to 20 Ton (up to 30 Ton customizable)
• Span: 7.5 m to 31.5 m
• Lifting Height: 3 m to 30 m (customizable)
• Working Duty: A3 to A5
• Operating Temperature: -20C to +40C
• Power Supply: 380V / 415V / 50Hz / 3 Phase (customizable)

Speed Parameters (Typical Range)

• Lifting Speed: 5 8 m/min
• Cross Travel Speed (Hoist): 2 20 m/min
• Long Travel Speed (Crane): 20 30 m/min

Main Components

• Single girder bridge (I-beam / box type)
• End carriages with wheels
• Electric wire rope hoist / chain hoist
• Travel mechanisms (CT & LT drives)
• Electrical control panel
• Pendant / Radio remote control
• DSL / Festoon system

Optional Features / Attachments

• Radio remote control
• VFD for smooth operation
• Low headroom hoist
• Limit switches & safety systems
• Anti-collision devices

Advantages

• Cost-effective compared to double girder cranes
• Lightweight structure reduces building load
• Ideal for small to medium industries
• Faster installation and lower maintenance
• Efficient use of floor space

Why Choose Single Girder Crane?

• Best for light to moderate lifting applications
• Perfect when budget and space optimization are important
• Reliable and versatile solution for general industrial use
